Created a video to help people get started with HexHoot

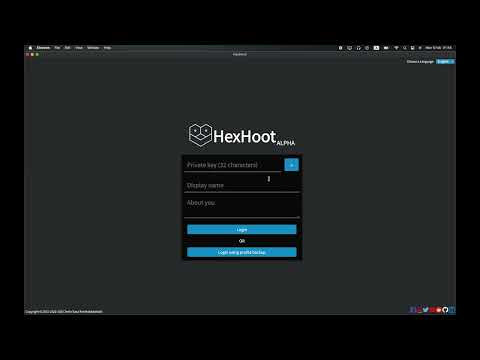

A few days ago, I decided to make version release for HexHoot on GitHub, as I think it is important to differentiate something that is more stable and something that is under development. Having versions that people can download seem to be the best move to do the same. Following the same, I shared it with people over LinkedIn, Facebook and Instagram. One of the feedbacks I received over private messages was asking me to provide more information on what it exactly is and how to use it. Although all these information are written in the documentation and the website, it appears to be that people like to watch videos explaining the same. Therefore, in the past couple of days, I have been performing screen recording and doing voice overs. Interestingly, during this process, I found a couple of issues with the software, and I fixed those. The following is the video. Please do provide your feedback on this project. It would be lovely if any of you are interested in contributing to the same. Y

COVID-19 Disease Spreading Simulation

At the moment, the world is fighting COVID-19. There have been many scientists who made simulations to demonstrate how the disease would spread. There was one simulation which I liked. It was a video in which people were put up as a dot that moved around the canvas. I want to reproduce that in JavaScript and make it tunable.




 View this in a new tab: Click Here


First, let us create a canvas div, in which all the people would exist. I am feeling a bit lazy to create a separate stylesheet. I will keep all the styles within the HTML Tags.

<div id="canvas" style="position: absolute; width: 500px; height: 500px; background: #efefef"></div>
Next, let us define a class named Person. The person starts at a random coordinate and moves in a random direction.

const maxVel = 5;
class Person{
    constructor(){
        this.div = document.createElement("div");
        this.div.style.width = "4px";
        this.div.style.height = "4px";
        this.div.style.borderRadius = "50%";
        this.div.style.background = "#000000";
        this.div.style.position = "absolute";

        // Init position
        this.div.style.left = Math.random() * 500;
        this.div.style.top = Math.random() * 500;

        // Init velocity
        this.Velx = Math.random() * maxVel;
        this.Vely = Math.random() * maxVel;

        document.getElementById("canvas").appendChild(this.div);

        this.updatePosition(this);
    }

    updatePosition(that){
        setInterval(function(){
            that.div.style.left = that.div.offsetLeft + that.Velx;
            that.div.style.top = that.div.offsetTop + that.Vely;

            if((that.div.offsetLeft >= 500 && that.Velx > 0) || (that.div.offsetLeft <= 0 && that.Velx < 0))
                that.Velx = - that.Velx;
            if((that.div.offsetTop >= 500 && that.Vely > 0) || (that.div.offsetTop <= 0 && that.Vely < 0))
                that.Vely = - that.Vely;
        },50);
    }
}
Now, if we can simply create a few objects of the class Person and watch the animation.
for(var i = 0; i < 20; i++){
    new Person();
}



Now, let's bring in the disease factor. Let us make the following assumptions:
  • If a healthy person comes close to a sick person by a certain distance, the healthy person gets infected.
  • The person has a small probability of dying at every time step.
  • After a certain amount of time, the sick person gets cured.
  • Once cured, the person shall no longer get sick ever again as the person gained immunity.
I went ahead with implementing it. It would be hard to explain everything step by step, but just have a look at the final code.

The following is the final HTML part:
<div id="canvas" style="position: absolute; width: 500px; height: 500px; background: #efefef; z-index: 900"></div>
<div style="position:absolute;z-index: 999;">
    <div id="numHealthy" style="display:block;"></div>
    <div id="numSick" style="display:block;"></div>
    <div id="numCured" style="display:block;"></div>
    <div id="numDead" style="display:block;"></div>
</div>
And the JavaScript Part:
const numInitHealthyPeople = 30;
const numInitSickPeople = 2;
const maxVel = 5;
const curePeriod = 50;
const killProbability = 0.005;
const spreadRadius = 20;
const divHealthy = document.getElementById("numHealthy");
const divSick = document.getElementById("numSick");
const divCured = document.getElementById("numCured");
const divDead = document.getElementById("numDead");
class Person{
    static allPersons = [];
    constructor(isSick = false){
        this.div = document.createElement("div");
        this.div.style.width = "4px";
        this.div.style.height = "4px";
        this.div.style.borderRadius = "50%";
        this.div.style.background = "#000000";
        this.div.style.position = "absolute";

        // Init position
        this.div.style.left = Math.random() * 500;
        this.div.style.top = Math.random() * 500;

        // Init velocity
        this.Velx = Math.random() * maxVel;
        this.Vely = Math.random() * maxVel;

        document.getElementById("canvas").appendChild(this.div);

        if(isSick){
            this.getSick(this);
        }
        this.sickDuration = 0;
        this.isCured = false;
        this.isDead = false;

        this.update(this);

        Person.allPersons.push(this);
    }

    update(that){
        var updateVar = setInterval(function(){
            // Position and Velocity:
            that.div.style.left = that.div.offsetLeft + that.Velx;
            that.div.style.top = that.div.offsetTop + that.Vely;

            if((that.div.offsetLeft >= 500 && that.Velx > 0) || (that.div.offsetLeft <= 0 && that.Velx < 0))
                that.Velx = - that.Velx;
            if((that.div.offsetTop >= 500 && that.Vely > 0) || (that.div.offsetTop <= 0 && that.Vely < 0))
                that.Vely = - that.Vely;

            // Receive disease if sick people nearby
            if(!(that.isCured || that.isSick)){
                for(var i = 0; i < Person.allPersons.length; i++){
                    var person2 = Person.allPersons[i];
                    // if person is nearby
                    if(person2.isSick){
                        var dist = Math.sqrt(Math.pow(that.div.offsetLeft - person2.div.offsetLeft, 2) + Math.pow(that.div.offsetTop - person2.div.offsetTop, 2));
                        if(dist < spreadRadius){
                            that.getSick(that);
                            break;
                        }
                    }
                }
            }

            // Sickness
            if(that.isSick){
                that.sickDuration++;
                if(that.sickDuration > curePeriod){
                    that.getCured(that);
                } else {
                    // Kill with probability:
                    if(Math.random() < killProbability){
                        that.kill(that);
                        clearInterval(updateVar);
                    }
                }
            }
            // Statistics Display:
            divHealthy.innerText = "Healthy: " + numHealthyPeople;
            divSick.innerText = "Sick: " + numSickPeople;
            divCured.innerText = "Cured: " + numCuredPeople;
            divDead.innerText = "Dead: " + numDeadPeople;

        },100);
    }

    getCured(that){
        that.isSick = false;
        that.isCured = true;
        that.div.style.background = "#00ff00";
        numCuredPeople++;
        numSickPeople--;
    }

    getSick(that){
        that.isSick = true;
        that.div.style.background = "#ff0000";
        numSickPeople++;
        numHealthyPeople--;
    }

    kill(that){
        that.div.parentElement.removeChild(that.div);
        that.isDead = true;
        numDeadPeople++;
        numSickPeople--;
    }
}
var numHealthyPeople = numInitHealthyPeople + numInitSickPeople;
var numSickPeople = 0; // get sick is called in the constructor
var numCuredPeople = 0;
var numDeadPeople = 0;
for(var i = 0; i < numInitHealthyPeople; i++){
    new Person();
}
for(var i = 0; i < numInitSickPeople; i++){
    new Person(true);
}
You can open up this code in GitHub using the following link:

https://github.com/zenineasa/DiseaseSpreadSimulator
